Creating Heatmaps and Well Plate Heatmaps in BioRender Graphing

If you're working with data that captures patterns, intensities, or variations across a grid-like structure, such as temperature readings, gene expression levels, or well plate assays, a heatmap can be a great way to visualize your data. Well plate heatmaps and heatmaps let you quickly identify trends and outliers by using color to represent values, making it easier to interpret and communicate your findings. Here's how to create them in BioRender Graphing.

📌 Beta: The Graphing agent is in beta.

Before you start

BioRender Graphing has two heatmap options:

  1. Regular heatmaps: Versatile and can be used for a variety of datasets.
  2. Well plate heatmaps: Specifically designed for data from well plates, with each cell representing a row and column of the plate.

Whichever way you create your heatmap:

  • Each value in the dataset corresponds to the same position on the heatmap (for example, row 1, column 1 is in the top-left corner).
  • You can paste your own data directly into the dataset.
  • Smart Data Import organizes your data for you.

Choose how you want to create your heatmap

  1. With the Graphing agent: upload your data and describe the heatmap you want.
  2. Manually: choose a heatmap from the Graphs panel and assign your variables yourself.

You can switch between the two at any point.

With the Graphing agent

Step 1: Add your data

  1. Open a new Graphing file.
  2. Click “Upload data” in the agent's message, or click the “+” button in the chat box.
  3. Choose your file, select the datasets you want, and click “Import data”.
  4. The agent describes your data and highlights the variables it detected.

Import your data

See How to add your data in BioRender Graphing.

Step 2: Ask for a heatmap

In the chat, ask for the heatmap you want. For example: "Create a well plate heatmap from [dataset name]." The agent suggests a graph type that fits your data. Say yes, or confirm you would like a different type of graph.

ask for a heatmap

Step 3: Check your variables and create the graph

The agent tells you what the graph needs and assigns your variables. Check that “Row factor” and “Column factor” match your row and column identifiers. If it can't tell which variable you mean, it asks. Click “Create the graph” when the plan looks right.

Check your variables and create your graph

Step 4: Customize your heatmap

Click ‘Ask BioRender” and describe the change. For example: "Change the color of the heatmap from blue to red."

  • Name the part you would like to customize, such as "the color bar" or "the row labels." Note, you can't click a graph element and send it to the chat.
  • If you don't like a change, click the undo arrow in the upper left corner or ask the agent to reverse the action.
  • If the agent can't do something, it tells you what it couldn't complete. Rephrase your request, or manually edit in the “Customize Graph” panel.

Customize your heatmap

For more on the agent, see How to use the Graphing agent in BioRender Graphing (Beta).


Manually

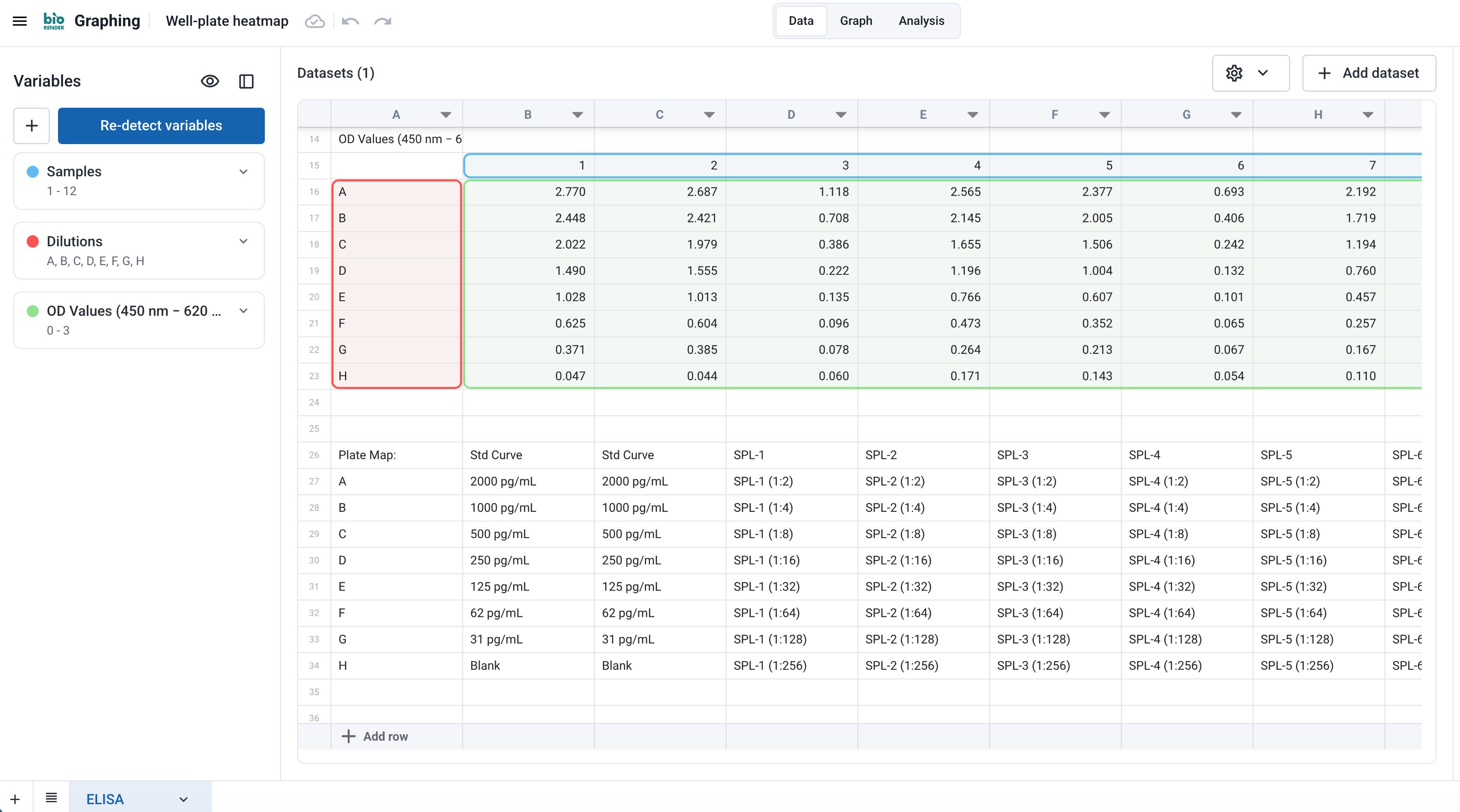

Step 1: Add your data

Click “Blank spreadsheet” on the “Data” tab, then paste or type your data.

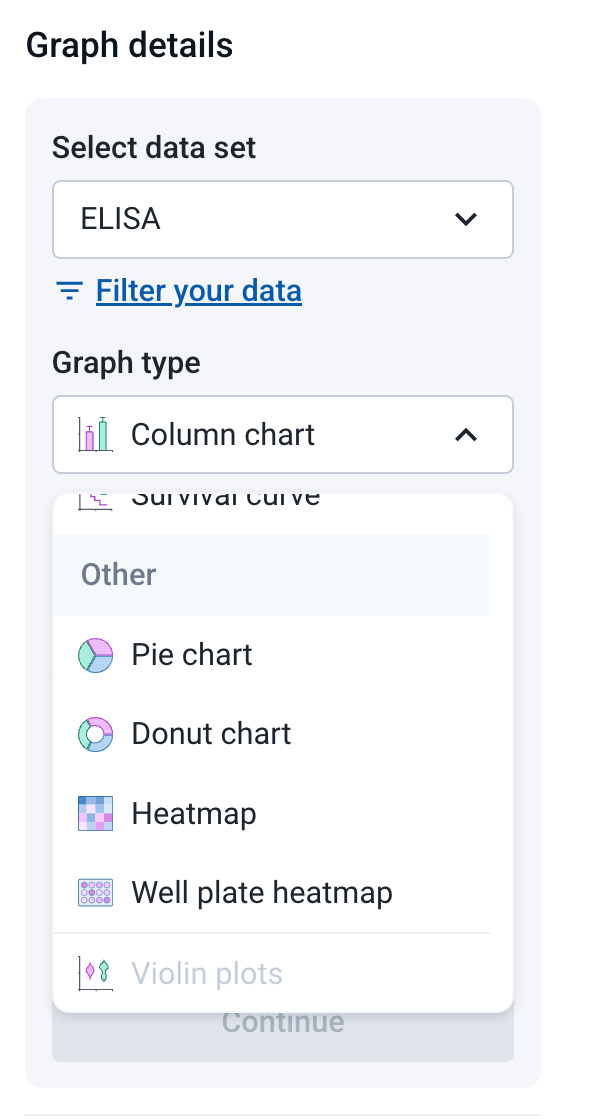

Step 2: Select Heatmap or Well plate heatmap

Click “Create New” and open the Graph menu. Choose “Heatmap” or “Well plate heatmap”.

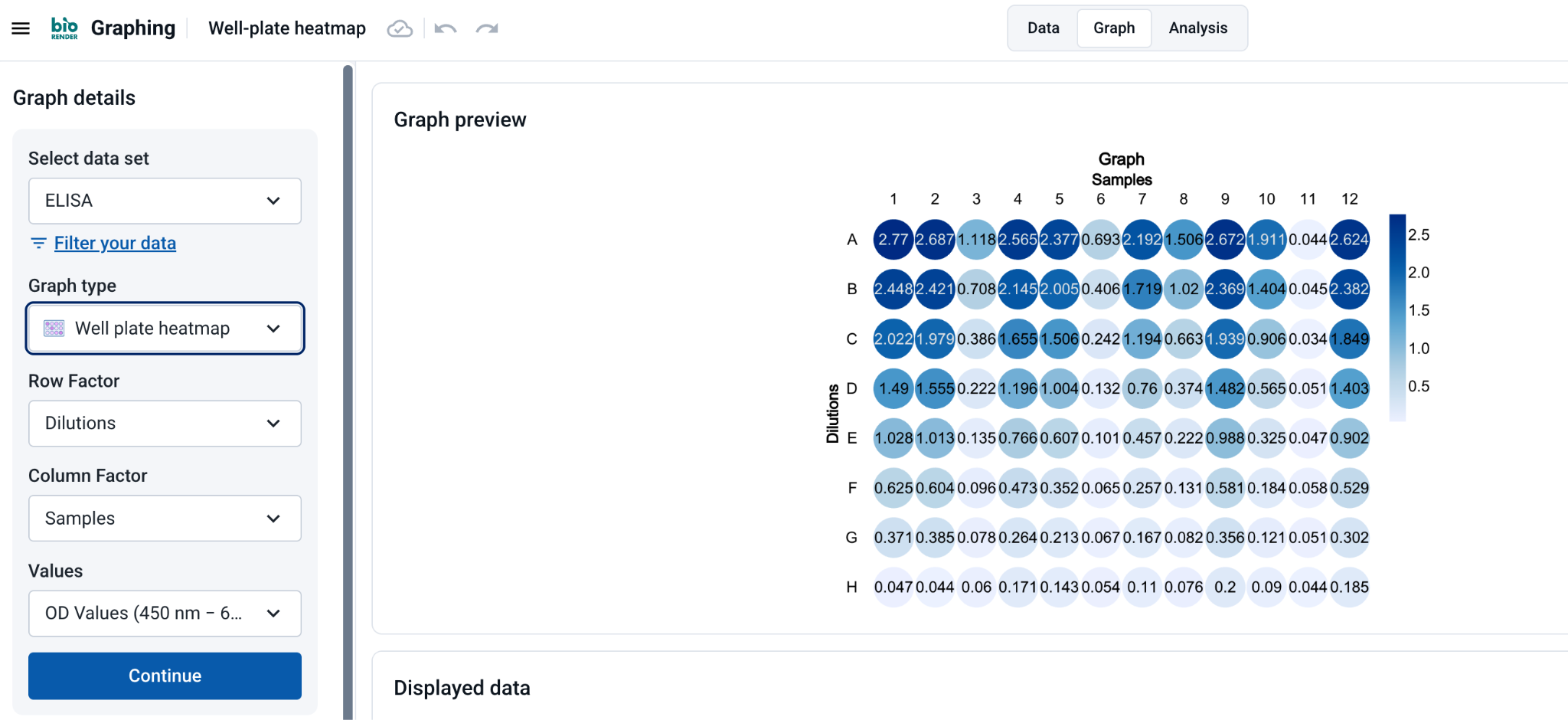

Step 3: Add your variables

Specify the variables for “Row factor”, “Column factor”, and “Values”. Row and column factors should be set to the variables containing your row and column identifiers. Assign each variable in the Graph details panel. Click “Continue” when the preview looks right.

Step 4: Customize your well plate or heatmap

You can customize many elements of the heatmap, similar to other BioRender Graphing visualizations, including font, graph title, and axis labels.

Click “Customize graph” in the upper right corner of the Graph tab, or click the part of the graph you want to change. You can customize:

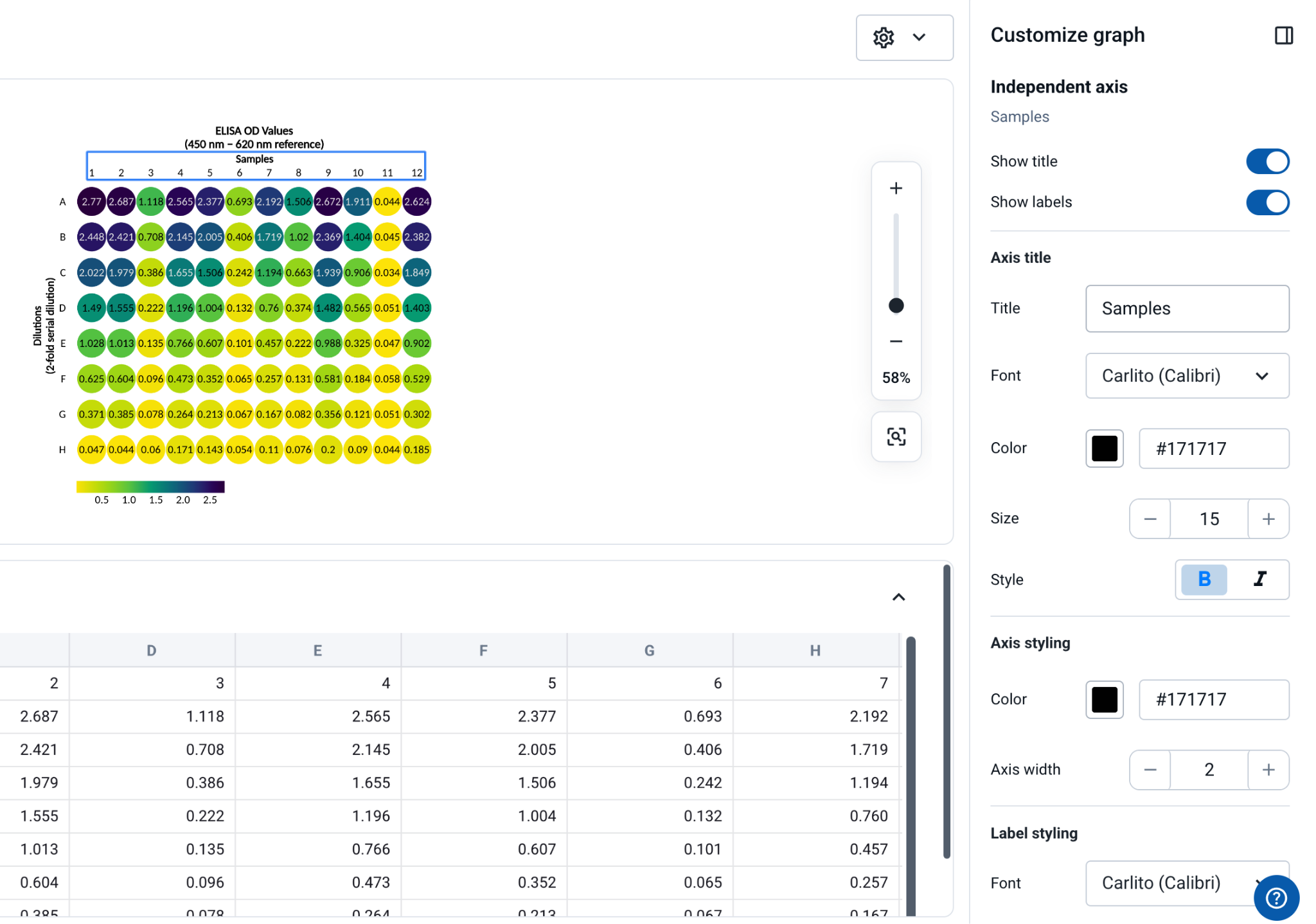

  • Independent axis

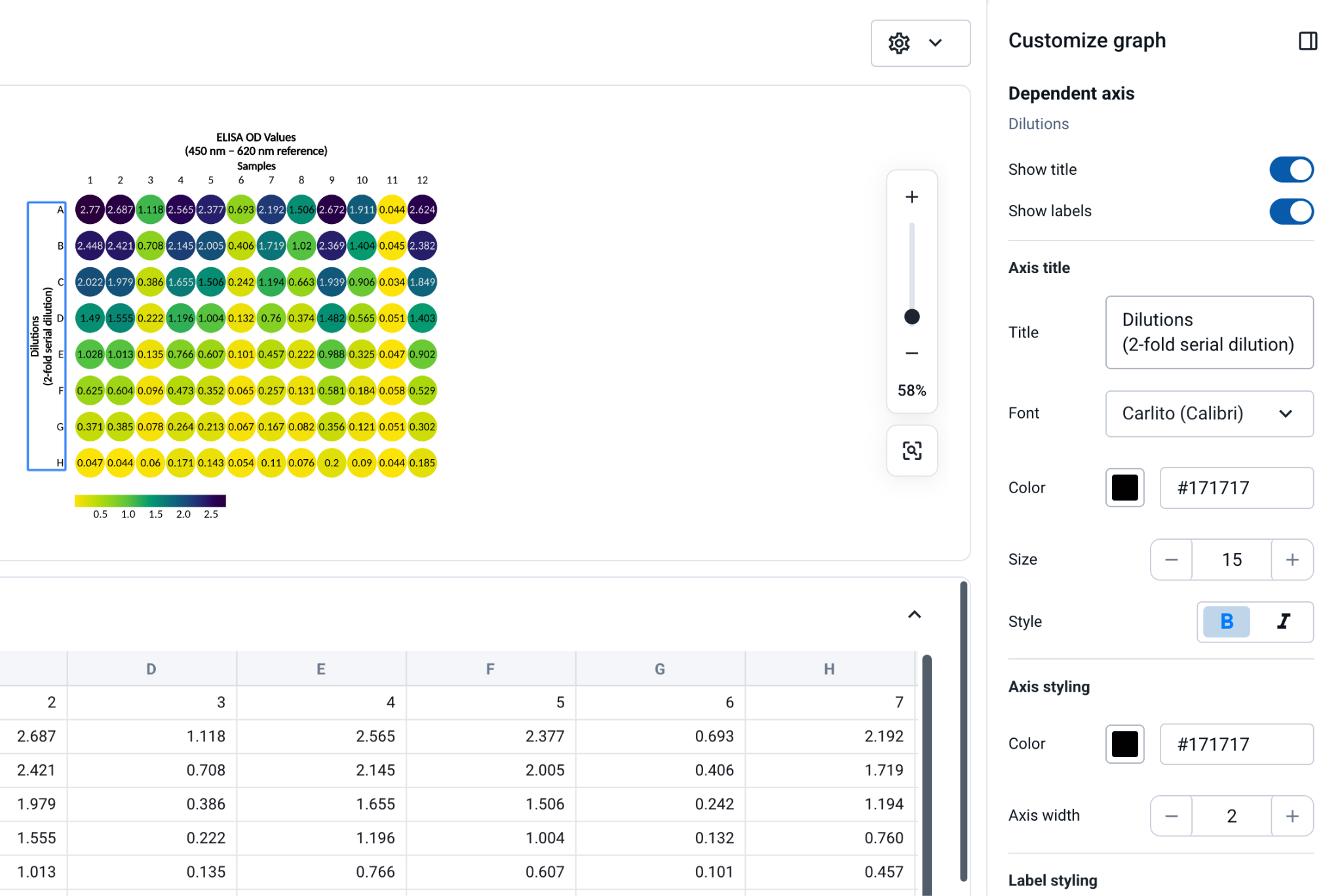

  • Dependent axis

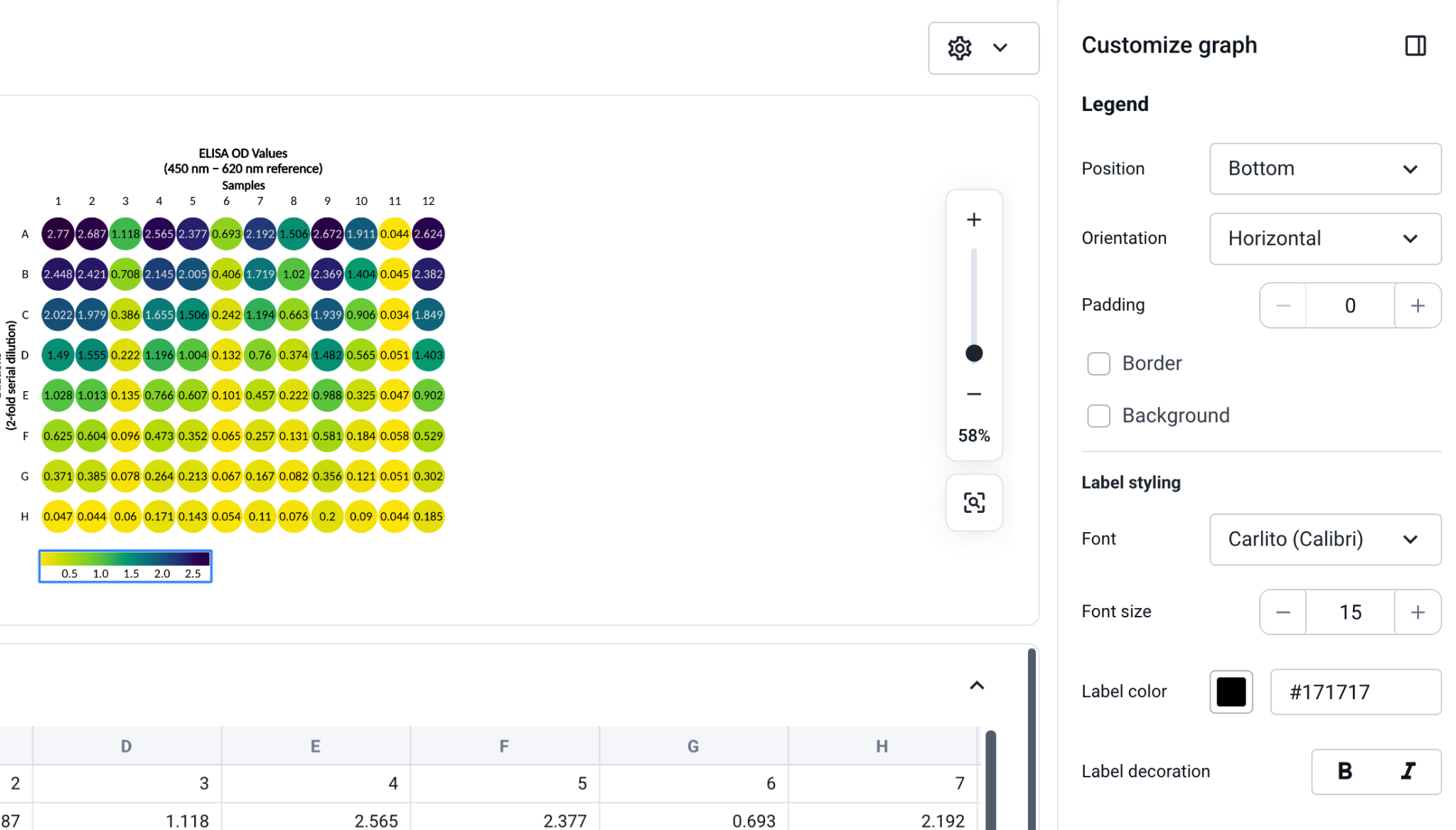

  • Legend

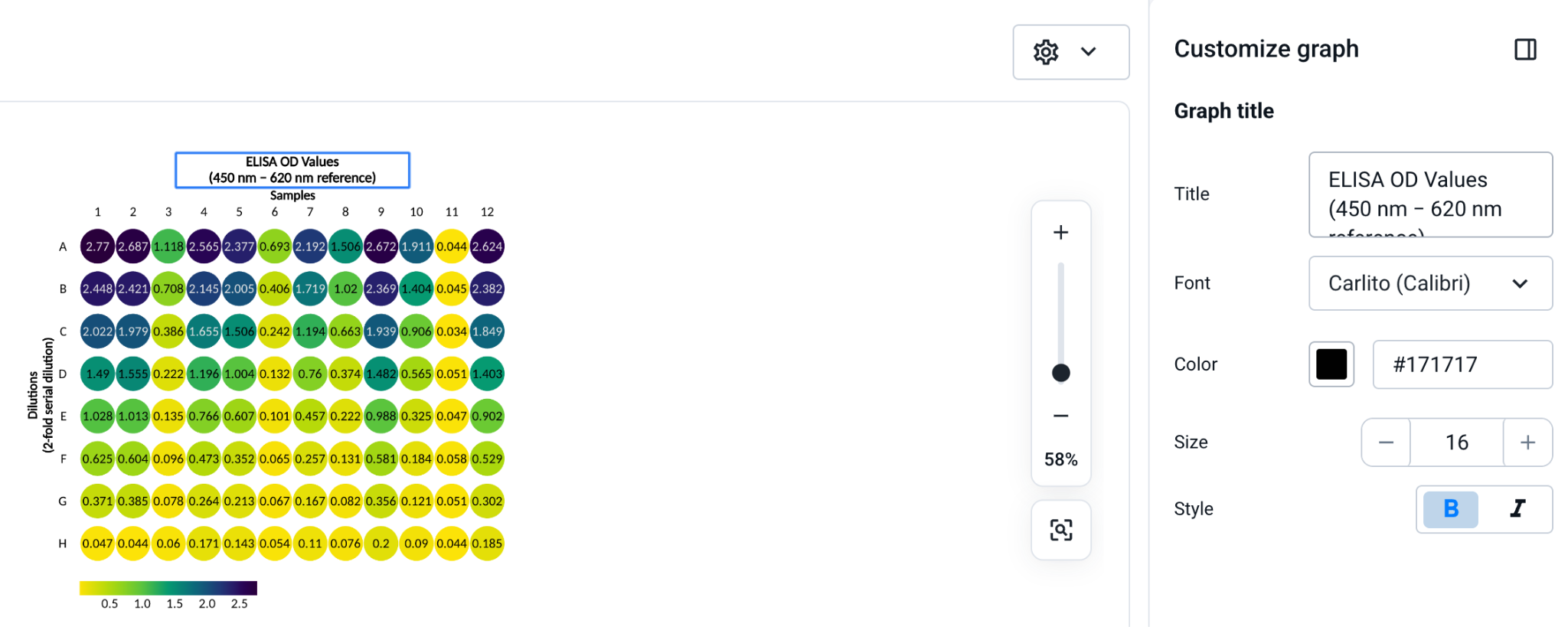

  • Graph title

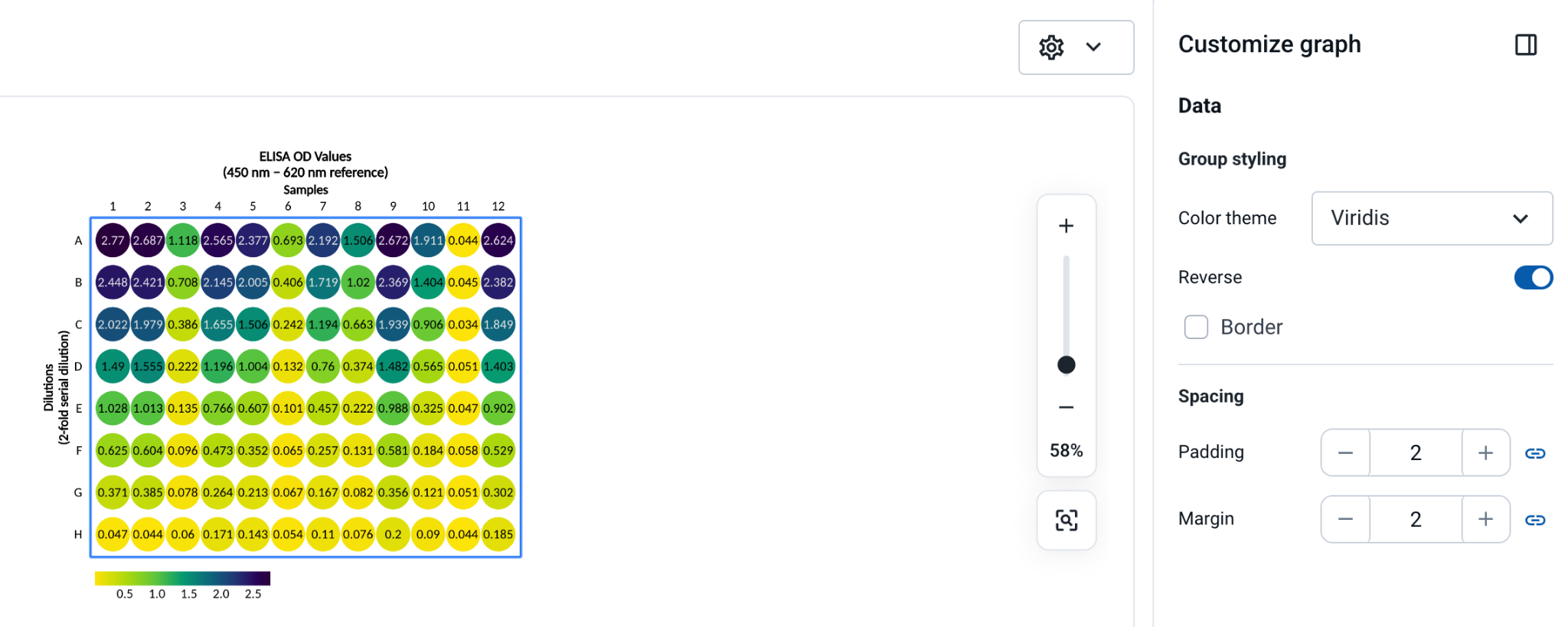

  • Sample data

For both heatmaps and well plate heatmaps:

  • Data normalization: Apply scale by row or column. This performs a Z-score standardization per row or column. The value labels, element colors, and color bar automatically adjust to reflect the changes.
  • Color bar customization: Click the color bar to open the customization menu, where you can change its position on the plot and adjust the border and background.

For heatmaps only:

  • Heatmap shape: The default shape is square. Increase the Corner radius to curve the corners.
  • Spacing and margin: Adjust the spacing between cells and the margin between the row and column labels and the cells. Setting spacing to 0 removes gaps between data points. Margin adds extra space.

For well plate heatmaps only:

  • Well plate border: Rounded corners are the default. Click anywhere on the heatmap to adjust the border settings.
  • Well display customization: Adjust the gap between wells, the border width, and the border color to suit your visualization.
  • Margin and padding: Margin adjusts the gap between the row and column labels and the plate. Padding affects the space between the wells and the edge of the plate.

For all the customization options, see How to customize your graph.

Troubleshooting tips

Empty wells in your well plate heatmap?

If you want to show empty wells alongside your data, make sure to enter row and column names for these wells. If the labels are left blank, the heatmap may appear incomplete.

Need clustering or analysis options?

We're actively working on these features. Stay tuned! The agent only runs analyses that Graphing supports, so it can't run clustering yet.

Switching between heatmap types?

You can switch between regular heatmaps and well plate heatmaps from the dropdown menu. Keep in mind that not all customizations carry over, so you may need to adjust some settings after switching. We recommend duplicating your graph before trying out a different visualization type.

The agent didn't create the heatmap I asked for.

Tell it which heatmap type you want, or choose one yourself from the “Graphs” panel on the Data tab.

Need help? Reach out to our support team at support@biorender.com or start a live chat by clicking the "Chat With Us" bubble in the bottom right corner.
