This article will guide you through exporting your illustrations from BioRender, either from the Canvas or your Gallery. It covers how to customize size, resolution, and file format, as well as the available export options for different plans.
File formats available for export
BioRender Basic (Free Plan)
- PNG
- JPG
- 72 DPI resolution
BioRender Premium (Paid Plan)
- PNG (with optional transparent background)
- JPG
- DPI options: 72, 150, 300, and 600 (600 DPI is only available for illustrations, not posters)

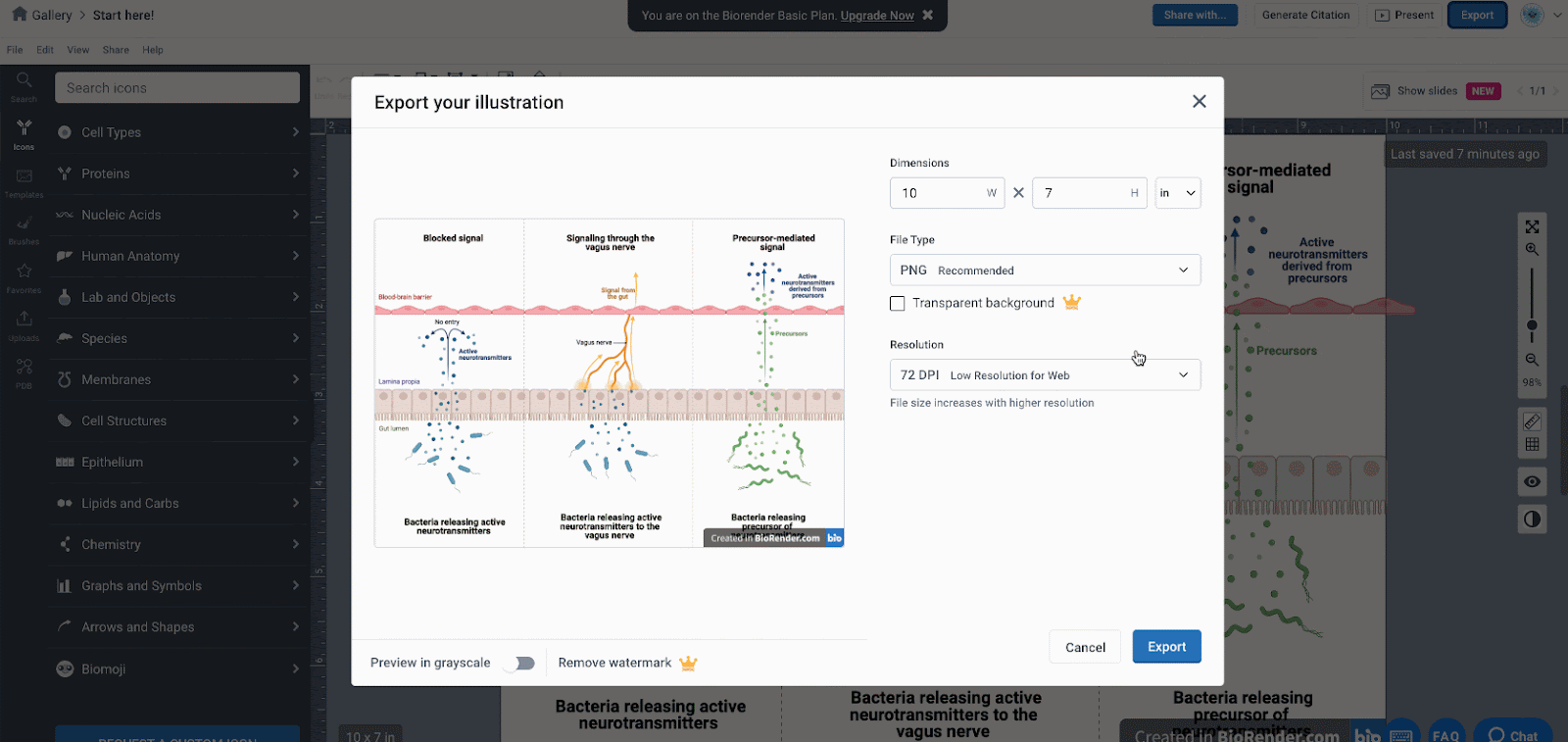

How to export your image from the canvas
- Click "Export" from the top-right corner.
- Select your file size, file format and resolution.
- Optional: Check the box “I would like a publication license with this export” if you need one.
- Click "Export". Your image file will download to your default Downloads folder on your local drive.
📤 Working in PowerPoint? Export directly to PPTX format (Premium Enterprise & Academic Institutional plans) to save time moving your figures into presentations. See how to export as PowerPoint slides
How to export your image from the gallery
- Locate the illustration in your Gallery and click on the three dots on the illustration you would like to export.
- Click "Export".
- Choose your file type and resolution.
- Click "Export". The image file will download to your default Downloads folder on your local drive.
Tips for export quality
Choosing DPI:
- For high-quality prints, select a higher DPI (150, 300, or 600 DPI)
- For digital use, 72 DPI is typically sufficient.
File Format Recommendations:
- PNG: Best for maintaining image transparency.
- JPG: Ideal for small file sizes with good quality.
- PDF: Recommended for vector-based images and scalable illustrations.
