Make visually consistent graphs using “Style Match” with just a few clicks - fonts, colors, axis formatting, spacing, and more. No more manually reformatting each graph to get a consistent look across graphs.
How to use Style Match
Style Match can be applied entirely, from the Graph Grid View without opening individual graphs.

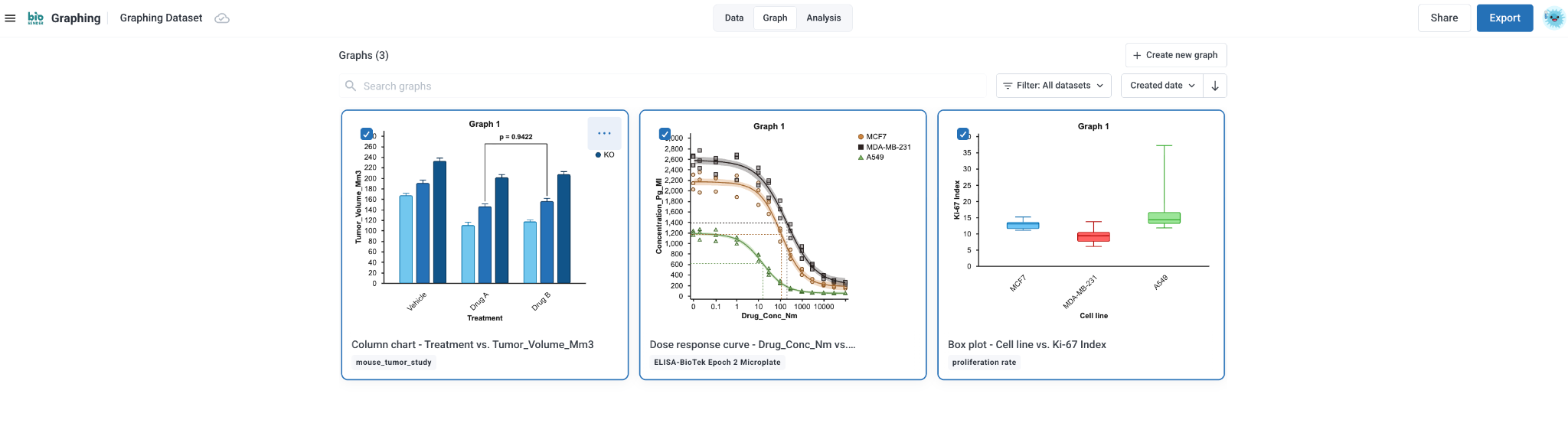

- Select the graph whose style you want to copy.

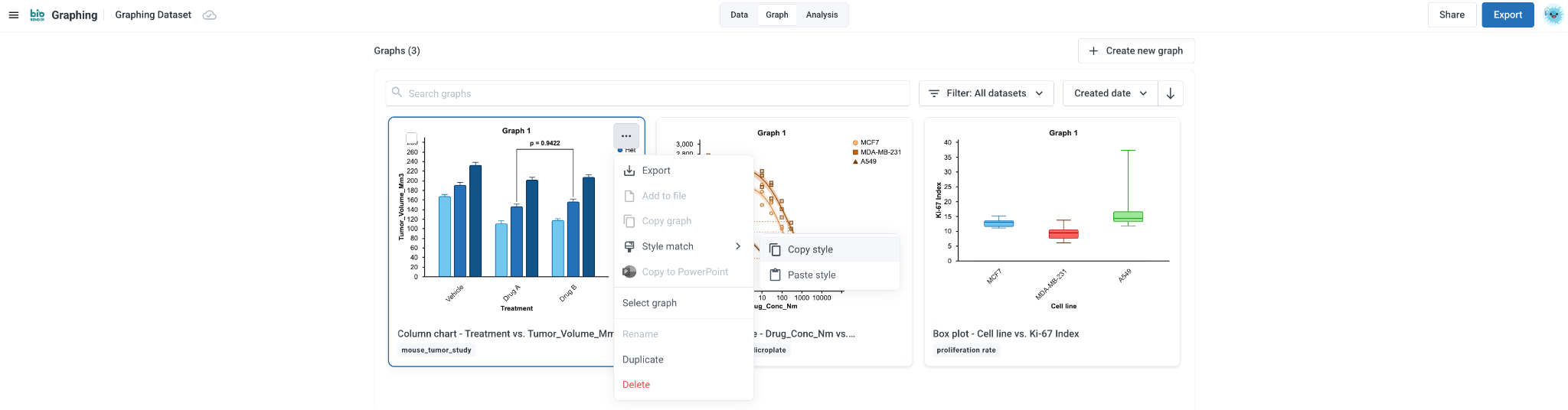

- Click on the three dots “...” in the Graph.
- Select Style match → Copy style.

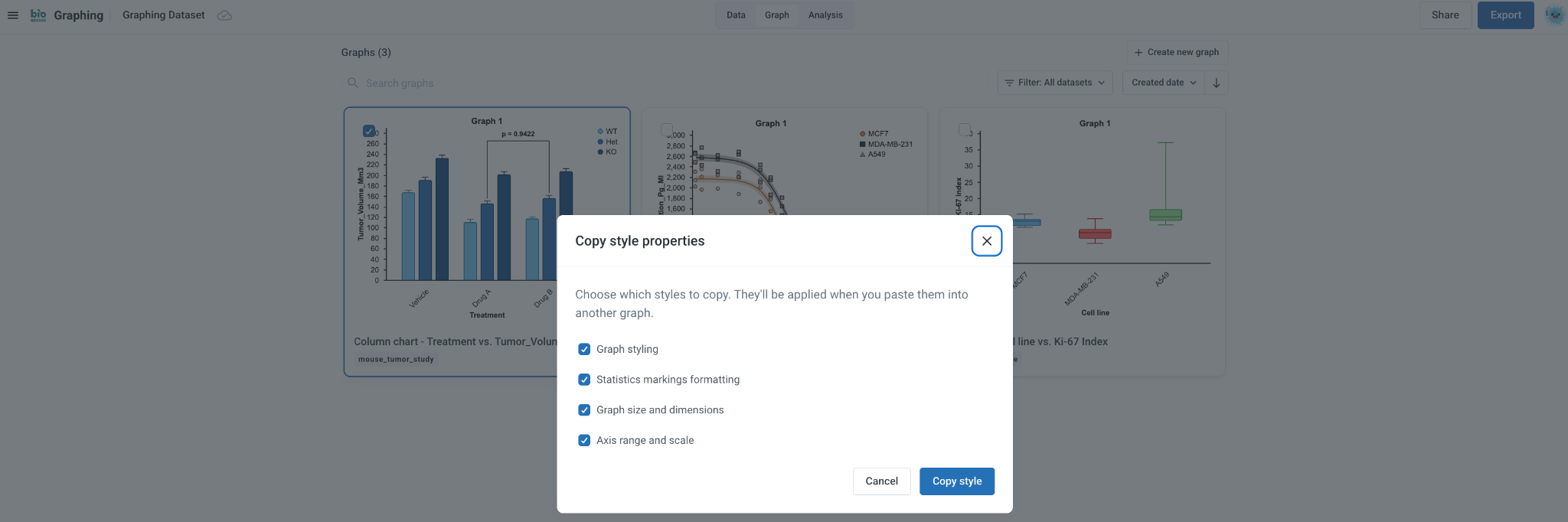

- Select the style properties you want to copy. Choose which categories to apply:
- Graph styling (checked by default): Colors, spacing, lines, fonts
- Statistics markings (checked by default): Pairwise comparisons, best-fit lines
- Graph size and dimensions: Useful for consistent panel figures
- Axis range and scale: Useful if you've set a log scale or custom tick spacing
- Select Copy Style.

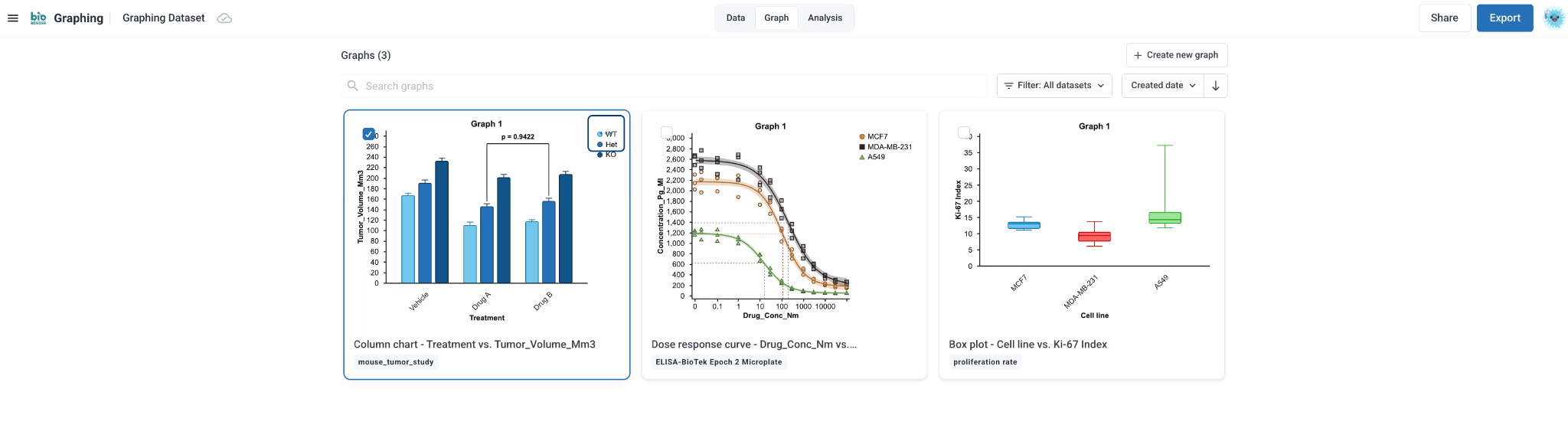

- Select one or more graphs you would like to apply the style to.
- Click Paste style
- You can access Paste Style in the Style Match drop down where you selected copy style

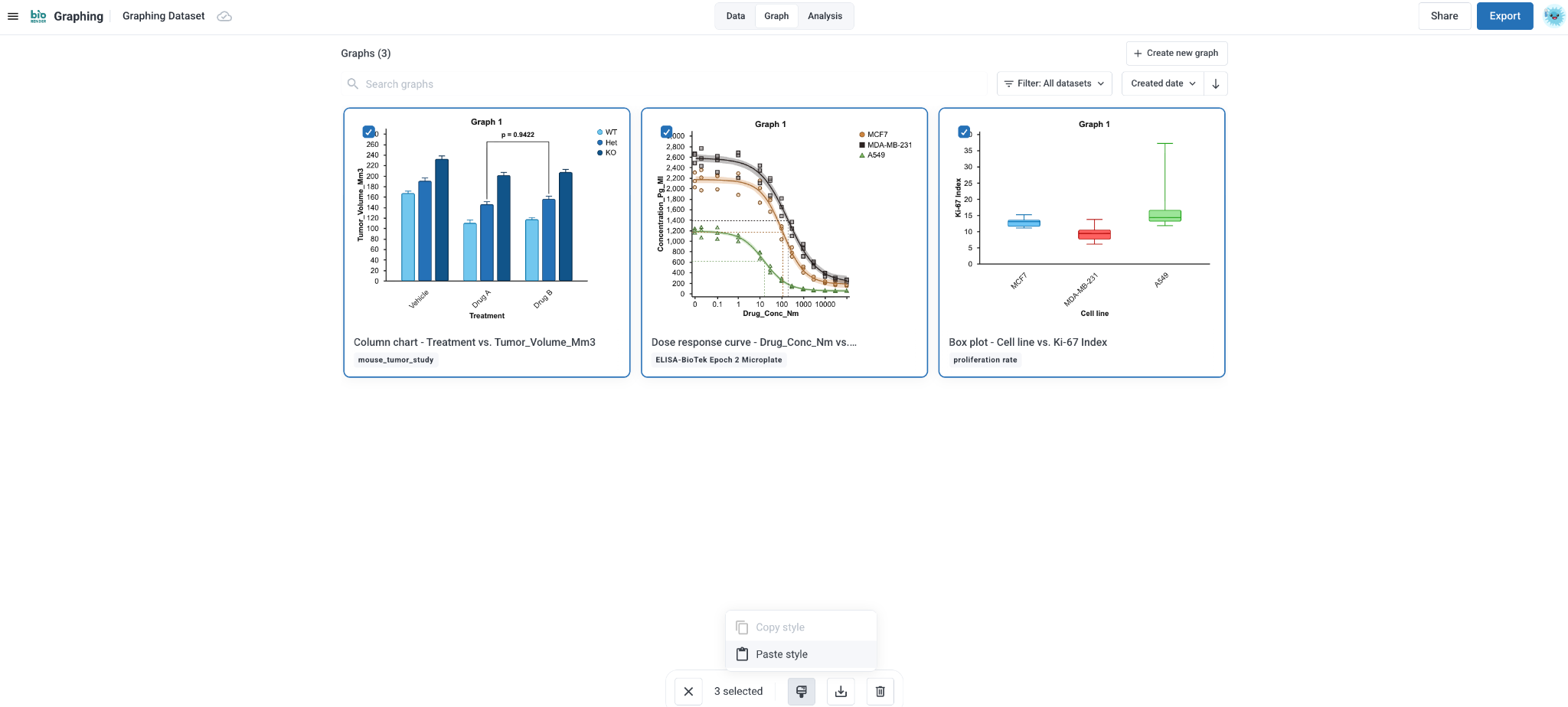

- You can access Paste Style at the bottom of the Graph Grid View panel.

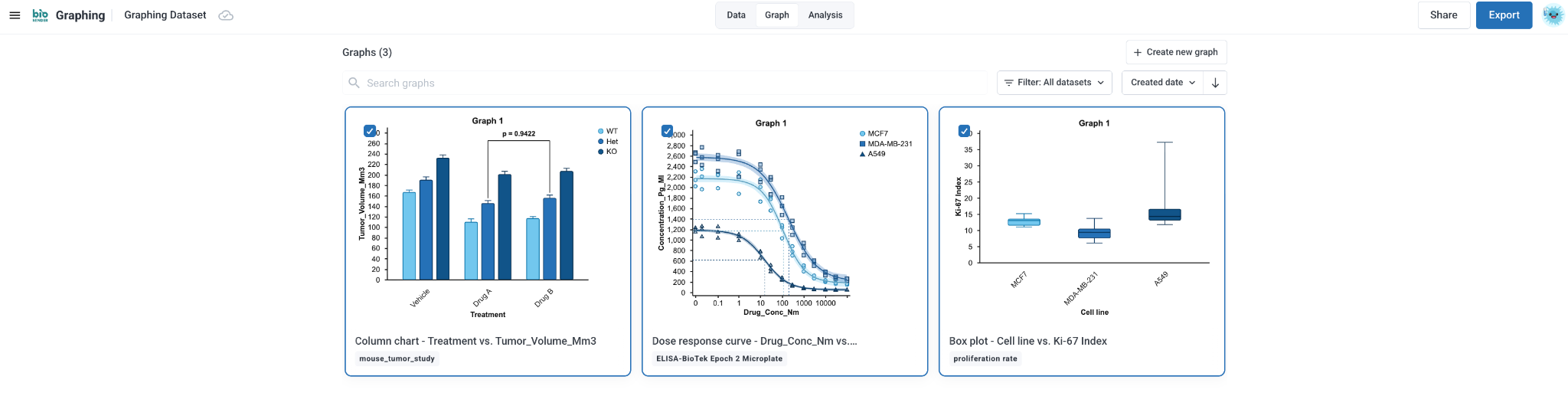

8. The selected Graphs will match the look of your initial chosen graph.
VIDEO TUTORIAL
Need help? Reach out to our support team at support@biorender.com or start a live chat by clicking the "Chat With Us" bubble in the bottom right corner.
